The Ultimate Guide to RGB Controllers

RGB lighting has become a cornerstone of custom PC builds, allowing gamers to create personalized lighting environments that complement their gaming experience. But not all RGB is created equal. This comprehensive guide breaks down the exact technical specifications and hardware capabilities of every relevant RGB controller.

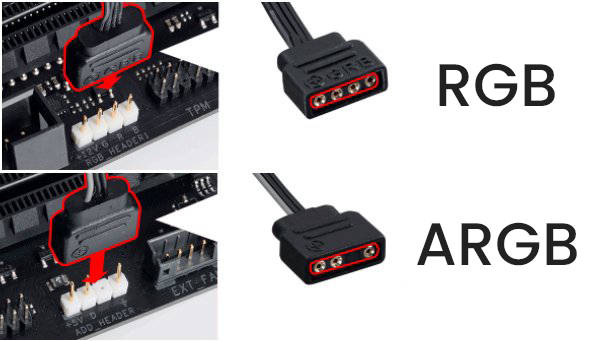

Understanding 5V ARGB vs 12V RGB

Before diving into specific controllers, it's essential to understand the fundamental differences between the two RGB lighting connections used in PC builds:

5V ARGB (Addressable RGB)

Connector type: 3-pin connector in a 4-pin form factor (one pin is blocked/absent)

Operates on 5V power supply with 3-pin connectors (Ground, Data, +5V)
Each individual LED can be controlled independently
Uses a serial data signal to communicate with tiny controllers attached to each LED
Can display multiple different colors simultaneously within a single lighting device
Most motherboard headers support 3A (15W), allowing for 100-500 LEDs per header depending on the motherboard model.

Proprietary ARGB Connectors: Many major brands such as Corsair, ThermalTake, NZXT, and Lian Li have developed their own proprietary ARGB connectors. Adapters that convert proprietary connectors to standard 3-pin ARGB connectors are widely available, with more details provided in this guide

12V RGB (Non-Addressable RGB)

Connector type: Standard 4-pin connector

Operates on 12V power supply with 4-pin connectors (+12V, Green, Red, Blue)
All LEDs in a single strip or device must display the same color simultaneously
Uses parallel analog control signals (one for each color: R, G, B)
Lower current draw for the same number of LEDs (typically 1A for 150 LEDs)
Can support longer LED strips with less voltage drop due to higher voltage.

Important compatibility note: These connector types are physically different to prevent incorrect connections. Connecting a 12V RGB to 5V ARGB and vice versa can cause permanent damage.

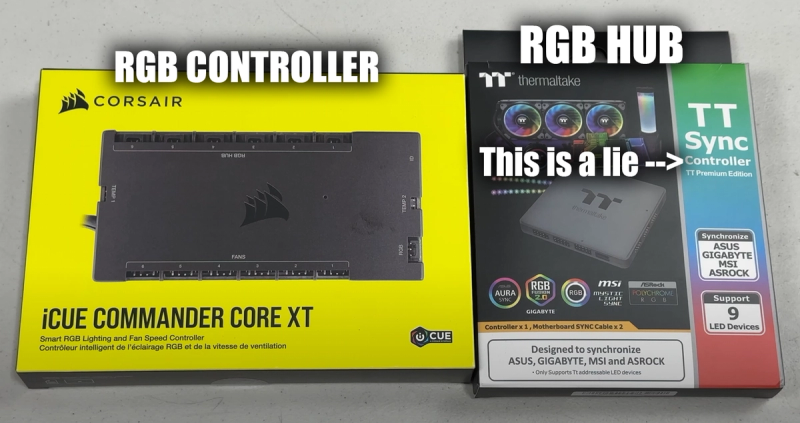

Understanding Controllers vs Hubs

Products like the TT Sync Controller TT Premium Edition are actually just passive splitters that mirror the same signal to all outputs. Despite the "controller" name, it contains no microprocessor for signal processing - they simply distribute the input signal from your motherboard across multiple connections.

The one exception is the Corsair RGB Fan LED Hub because it's designed to work specifically with Corsair's true controllers (like the Commander Pro) as an extension of their ecosystem, not as a standalone hub.

This naming confusion is unfortunately common in the RGB market, with many "hubs" or "controllers" actually being simple splitters that can't independently control connected devices. The best way to make sure you’re buying the right product is to avoid cheap “controllers” online that are ten to fifteen dollars and verify that it connects via internal USB. Continue reading for a full list of real RGB controllers and which ones are the best to purchase.

Nollie RGB Controllers

Nollie controllers are specifically designed for maximum RGB control and SignalRGB compatibility with the standard ARGB connection system.

Nollie 1

ARGB ports: 1 ARGB (5V 3-pin)
LED capacity: 630 LEDs per channel
Connection type: USB-A to USB-C cable (50cm)
Power requirements: USB powered, MAX 5V 2.6A
Unique features: Ultra-compact size, single high-capacity channel, USB-C connection

Nollie 8

ARGB ports: 8 ARGB (5V 3-pin)
LED capacity: 126 LEDs per channel (1,008 LEDs total)
Connection type: USB 2.0 internal motherboard header + 2 SATA power
Power requirements: 2 SATA power connections
Unique features: 4A fuse protection (dual 4A fuses, 8A total), compact design

Nollie 16

ARGB ports: 16 ARGB (5V 3-pin)
LED capacity: 256 LEDs per channel (4,096 LEDs total)
Connection type: USB 2.0 internal motherboard header + 2 Molex power
Power requirements: 2 Molex connections
Unique features: 15A fuse protection, High-Speed USB interface

Nollie 32

ARGB ports: 16 standard ARGB (5V 3-pin) + 12 channels for Lian Li Strimer cables + 4 external expansion channels
LED capacity: 256 LEDs per channel (8,192 LEDs total)
Connection type: USB 2.0 internal motherboard header + 2 Molex power
Power requirements: 2 Molex connections
Unique features: 15A fuse protection, Hall Current Sensors, RISC-V core processor, native Lian Li Strimer support, driving capability equivalent to 68 motherboards

Prism RGB Controllers

Prism controllers are designed exclusively for optimal SignalRGB performance with the standard ARGB connection system.

Prism 8

ARGB ports: 8 ARGB channels
LED capacity: 126 LEDs per channel (1,008 LEDs total)
Connection type: USB 2.0 internal connection
Power requirements: SATA power
Unique features: Enhanced frame rate for smoother animations with SignalRGB, plug-and-play functionality

Prism S

ARGB ports: Specialized for Lian Li Strimer cables (non-wireless)
LED capacity: Designed to handle Lian Li Strimers
Connection type: USB 2.0 internal connection
Power requirements: SATA power
Unique features: Designed specifically for Lian Li Strimer cables, higher frame rate than native Lian Li controllers

Airgoo RGB Controllers

Airgoo offers controllers specifically designed for SignalRGB compatibility with the standard ARGB connection system.

AG-DRGB16

ARGB ports: 16 individually addressable RGB channels
LED capacity: Not specified per channel, but handles extensive lighting setups
Connection type: USB 2.0 for data, SATA for power
Power requirements: 5V (for ARGB lights), up to 22.5W total
Unique features: Self-resetting fuse protection, magnetic fixture for easy mounting, 16 independent channels

AG-DRGB04

ARGB ports: 4 individually addressable RGB channels
LED capacity: Not specified per channel
Connection type: USB 2.0 for data, external DC power adapter
Power requirements: DC 5V 3A power adapter input, up to 15W total
Unique features: External power adapter for stable power delivery, self-resetting fuse against overloads and short circuits

Corsair RGB Controllers

Corsair offers multiple options depending on your needs but all of them are with proprietary connection systems.

Commander Core XT

ARGB ports: 6 RGB fan ports + 1 additional RGB channel
LED capacity: Up to 264 RGB LEDs total
Connection type: USB 2.0 internal header + SATA power
Power requirements: 12V via SATA, approximately 4.5A total across all fan channels
Unique features: Intelligent detection of Corsair RGB fan types, two temperature sensor inputs, zero RPM mode

Commander Pro

ARGB ports: 2 RGB lighting channels + 6 RGB fan ports
LED capacity: Up to 250 RGB LEDs total
Power requirements: 12V via SATA, each fan header supports 1A (max 4.5A total)
Unique features: Four temperature sensors included, two USB 2.0 headers for expanding connectivity

iCUE LINK System Hub

ARGB ports: 2 iCUE LINK ports supporting up to 24 devices total
LED capacity: Each of the two channels on the hub supports up to 12 devices.
Connection type: Micro-USB to internal USB 2.0 header + PCIe 6-pin power
Power requirements: 6-pin PCIe power connector
Unique features: Single-cable daisy-chain technology, two-way communication with each device.

Lighting Node CORE

ARGB ports: 6 RGB fan ports
LED capacity: Designed for 6 Corsair RGB fans
Connection type: USB 2.0 internal header + SATA power
Power requirements: 5V via SATA power, rated current 1.25A

Lighting Node Pro

ARGB ports: 2 RGB lighting channels
LED capacity: Capable of controlling 204 LEDs off of a single channel, OR has the ability to control up to 120 LEDs per channel when utilizing both. It is one or the other. If you have more than 120 LEDs being powered off a single LED channel on the LNP you cannot utilize the second LED channel.
Connection type: USB 2.0 internal header + SATA power
Power requirements: 5V via SATA power, rated current 1.25A

Razer RGB Controller

Razer's RGB controller offers great compatibility with the standard ARGB connection system.

ARGB ports: 6 addressable RGB (ARGB) headers/ports (3-pin, 5V)
LED capacity: Each port supports up to 80 LEDs (240 total LED limit)
Connection type: Internal USB 2.0 header + Molex power
Power requirements: Molex connector (5V)
Unique features: Universal compatibility with any ARGB device using standard 3-pin 5V -connectors, daisy-chaining support

NZXT RGB Controllers

NZXT offers RGB controllers with proprietary connection systems.

RGB & Fan Controller (2022 Model)

ARGB ports: 6 NZXT RGB lighting channels
LED capacity: 40 individually addressable LEDs per channel, 120 LEDs total
Connection type: Internal USB 2.0 header + SATA power
Power requirements: 5V via SATA power
Unique features: Controls up to nine 3-pin DC or 4-pin PWM fans, Zero RPM mode for noise optimization, magnetic mounting

Control Hub

ARGB ports: 4 NZXT 8-pin ports, 1 NZXT RGB channel
LED capacity: 96 LEDs per NZXT 8-pin channel, 40 LEDs for NZXT RGB channel
Connection type: Internal USB 2.0 header + SATA power
Power requirements: 5V via SATA power
Unique features: Designed for RGB Core Single-Frame Fans, supports up to 5 PWM fans or 4 NZXT Single-Frame fans

Lian Li RGB Controllers

Lian Li provides RGB controllers designed for their proprietary ecosystem of fans and lighting accessories. All Lian Li controllers suffer from fundamental firmware limitations that significantly impact animation smoothness when used with SignalRGB, making alternative ARGB controllers the preferred choice for enthusiasts seeking responsive RGB control.

UNI HUB SL Controller (Original SL Series)

ARGB ports: 4 fan group ports (7-pin proprietary), each supporting up to 4 fans in daisy-chain configuration
LED capacity: 32 addressable LEDs per fan, maximum 16 fans total (512 LEDs)
Connection type: USB header + 5V ARGB header + PWM header + SATA power
Power requirements: SATA power (primary), with second SATA connection required for >12 fans or white lighting configurations
Additional connections: 2 x SM-type ports (5W each) for additional accessories Unique features: Single cable solution combining RGB, PWM, and power for SL fans

UNI HUB SL V2 Controller

ARGB ports: 4 fan group ports with enhanced daisy-chain supporting up to 6 fans per port LED capacity: Improved capacity over original with support for more fans per chain
Connection type: USB header + SATA power connections
Power requirements: Main SATA required, sub-SATA power needed when connecting >12 fans
Unique features: Backward compatibility with original SL fans

UNI HUB SL Infinity Controller

ARGB ports: 4 fan group ports (7-pin proprietary) supporting up to 4 fans per port in daisy-chain configuration
LED capacity: Enhanced LED density per fan compared to original SL series, maximum 16 fans total with significantly higher total LED count
Connection type: USB header + 5V ARGB header + PWM header + SATA power
Power requirements: SATA power (primary), with second SATA connection recommended for >10 fans or intensive white lighting
Additional connections: 2 x SM-type ports for accessories, improved power delivery over original SL controller

UNI HUB TL Series Controller

ARGB ports: 4 fan group signal ports supporting up to 10 TL fans or 3 TL LCD fans per port
LED capacity: Variable based on TL fan configuration and LCD screen requirements
Connection type: USB header + SATA power
Power requirements: SATA power with additional power considerations for LCD fans
TL LCD limitations: Maximum 7 TL LCD fans total across entire system, must connect to controller ports 2-4 only (port 1 incompatible)
Unique features: Supports both standard TL fans and TL LCD fans with integrated screens

L-Wireless Controller

Wireless capabilities: 2.4GHz signal supporting up to 10 channels simultaneously
Channel allocation: Each Strimer cable or fan cluster occupies one dedicated channel
Connection type: USB receiver + power connections for wireless hubs LCD support: Requires additional USB connection specifically for screen signal transmission
Unique features: Eliminates cable runs for RGB control, supports mixed device types across channels
Limitations: Wireless interference potential, channel management complexity, additional power requirements for wireless hubs

Strimer Controller V1

LED capacity: 24-PIN ATX (120 LEDs), Dual 8-PIN PCIe (108 LEDs), Triple 8-PIN PCIe (162 LEDs)
Connection type: SATA power + USB 2.0 header
Power requirements: 5V via SATA power connector
Cable compatibility: Original Strimer Plus cables only
Important Information: Hold the M1 button down for a few seconds to enter motherboard control mode.
Limitations: Static white lighting requires 50% brightness reduction, basic effect library, limited customization options

Strimer Controller V2

LED capacity: Same configurations as V1 - 24-PIN ATX (120 LEDs), Dual 8-PIN PCIe (108 LEDs), Triple 8-PIN PCIe (162 LEDs)
Connection type: SATA power + USB 2.0 header (same physical connections)
Power requirements: 5V via SATA power connector
Cable compatibility: Backward compatible with V1 Strimer Plus cables + supports newer Strimer Plus V2 cables

Thermaltake RGB Controllers

Thermaltake offers RGB controllers with proprietary connection systems.

Riing Plus RGB Controller (3-Port Model)

ARGB ports: 3 controller ports (refer to compatible devices list)
LED capacity: Not Specified
Connection type: Fan header connection to motherboard
Power requirements: Molex power connection
Unique features: Physical button control with 5 LED modes (red, blue, white, green, or off), color cycle with speed control, no software required.

Riing Duo, Plus, Trio, Quad, SWAFAN, TOUGHFAN RGB Controller (5-Port Model)

ARGB ports: 5 addressable LED ports.
LED capacity: Each controller is engineered specifically for its designated fan model. While controllers may appear similar, they might have distinct capabilities tailored to their paired fans. For example, do not connect Ring Trio Fans to Ring Plus controllers, as this may result in improper operation. Always use the controller that was designed for your specific fan model.
Connection type: Internal USB 2.0 header + SATA power
Power requirements: Molex power connection

Cooler Master RGB Controllers

Cooler Master offers various RGB controllers with the standard ARGB connection system.

Addressable RGB LED Controller

ARGB ports: 4 x 3-pin ARGB ports
LED capacity: Not Specified
Connection type: SATA power + optional USB connection for software control
Power requirements: 5V via SATA power
Unique features: Thermal detection function for temperature monitoring, built-in magnets for easy mounting on any metal surface, compatible with both 3-pin ARGB and 4-pin RGB devices, works standalone via internal USB or with motherboard headers.

Mini Addressable RGB LED Controller

ARGB ports: 1 port with included 1-to-4 ARGB splitter cable
LED capacity: Not Specified
Connection type: SATA power + compatible with case reset button
Power requirements: 5V via SATA power
Unique features: 6 pre-set modes (ARGB, Breathe Mode, Red, Yellow, Green, and Off), compact size with built-in magnets, no motherboard or software needed

Addressable Gen 2 RGB LED Controller (A1)

ARGB ports: 3 ARGB headers
LED capacity: Up to 80 individual LEDs per header, 240 LEDs total
Connection type: 5V SATA power + 9-pin USB connector
Power requirements: 5V via SATA power

Aquacomputer RGB Controllers

Aquacomputer offers high-end controllers with extensive features beyond RGB lighting.

Farbwerk 360

ARGB ports: 4 RGBpx channels for addressable LEDs
LED capacity: 90 LEDs per channel, 360 LEDs total
Connection type: USB 2.0
Power requirements: 5V DC, max 8A (40W)
Unique features: 20 configurable effect controllers, four temperature sensor inputs, one flow sensor input, AMBIENTpx effect for monitor backlighting

Farbwerk Nano

ARGB ports: 1 RGBpx channel for addressable LEDs
LED capacity: 90 addressable LEDs
Connection type: USB 2.0 (internal or external version available)
Power requirements: 5V DC via USB, configurable to 0.5A or 2A maximum
Unique features: Ambient light sensor, integrated button with three functions, 20 configurable effect controllers

Quadro

ARGB ports: 1 RGBpx channel for addressable LEDs
LED capacity: 90 addressable LEDs
Fan control: 4 PWM fan channels (25W per channel)
Connection type: USB 2.0, Aquabus
Power requirements: 5V and 12V input
Unique features: Four temperature sensor inputs, flow sensor input, eight software sensors

Octo

ARGB ports: 2 RGBpx channels for addressable LEDs
LED capacity: 90 LEDs per channel, 180 LEDs total
Fan control: 8 PWM fan channels (25W per channel, 100W total)
Connection type: USB 2.0, Aquabus
Power requirements: 5V and 12V input
Unique features: Four temperature sensor inputs, flow sensor input, 16 software sensors

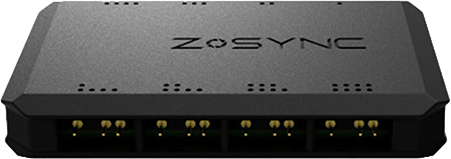

Zalman Z-Sync Controller

Zalman's RGB controller offers compatibility with the standard ARGB connection system.

ARGB ports: 8 x 3-pin ARGB connectors (5V addressable)
LED capacity: RGB rated current: 4A total across all 8 channels
Connection type: USB 2.0 header (Mini USB 5-Pin to USB 2.0 Header Pin) + SATA power
Power requirements: 5V DC via SATA power connector

Top Controllers for SignalRGB

Nollie 32: The undisputed champion for SignalRGB compatibility

Key advantages: Massive 8,192 LED capacity, native Lian Li Strimer support, RISC-V processor for complex effects, Works with standard 3-pin ARGB device
Technical distinction: Offers 32 total channels including specialized channels for Strimer cables

Airgoo AG-DRGB16: Purpose-built for SignalRGB

Key advantages: 16 independent channels, self-resetting fuse protection, magnetic mounting
Technical distinction: Specifically designed for SignalRGB compatibility from the ground up

Why These Controllers Excel with SignalRGB

Protocol compatibility: These controllers use standardized communication protocols that SignalRGB can easily interface with
Hardware recognition: SignalRGB's device plugins are specifically optimized for these controllers
Performance overhead: These controllers have sufficient processing power to handle complex SignalRGB effects
Driver stability: Minimal conflicts between controller firmware and SignalRGB software
